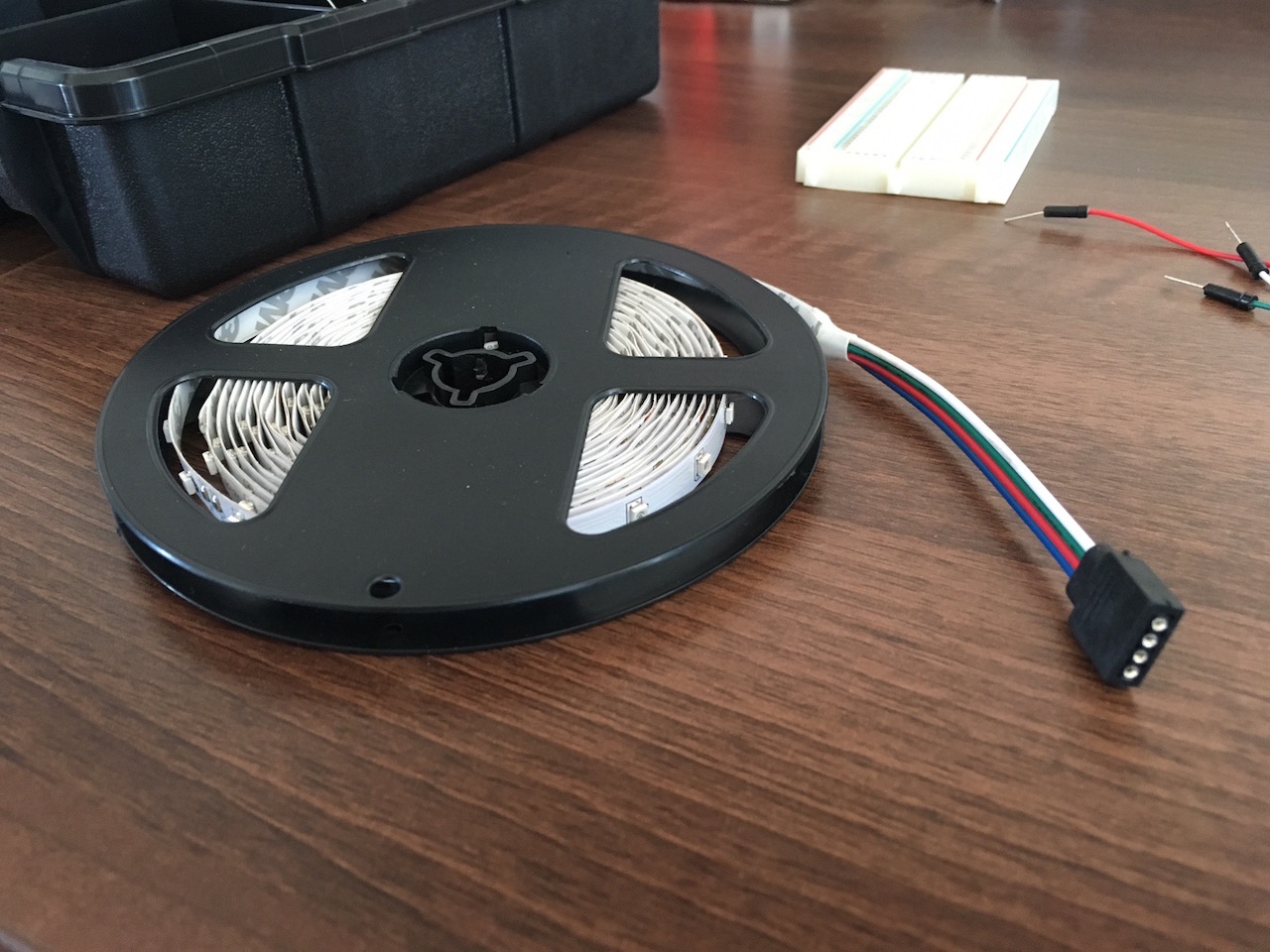

I was doing a clean up at the apartment and came across a couple of rolls of 3528 and 5050 LED strips that I bought and never used. The 5050 strip was quite short but water proof and the 3528 wasn't water proof but was fairly long. I decided to use the 3528 LED strip underneath my sliding doors to spruce up the balcony this Festive season.

Unfortunately the LED controller had female connectors on it, the LED strip also had female connectors, one of them had to be changed.

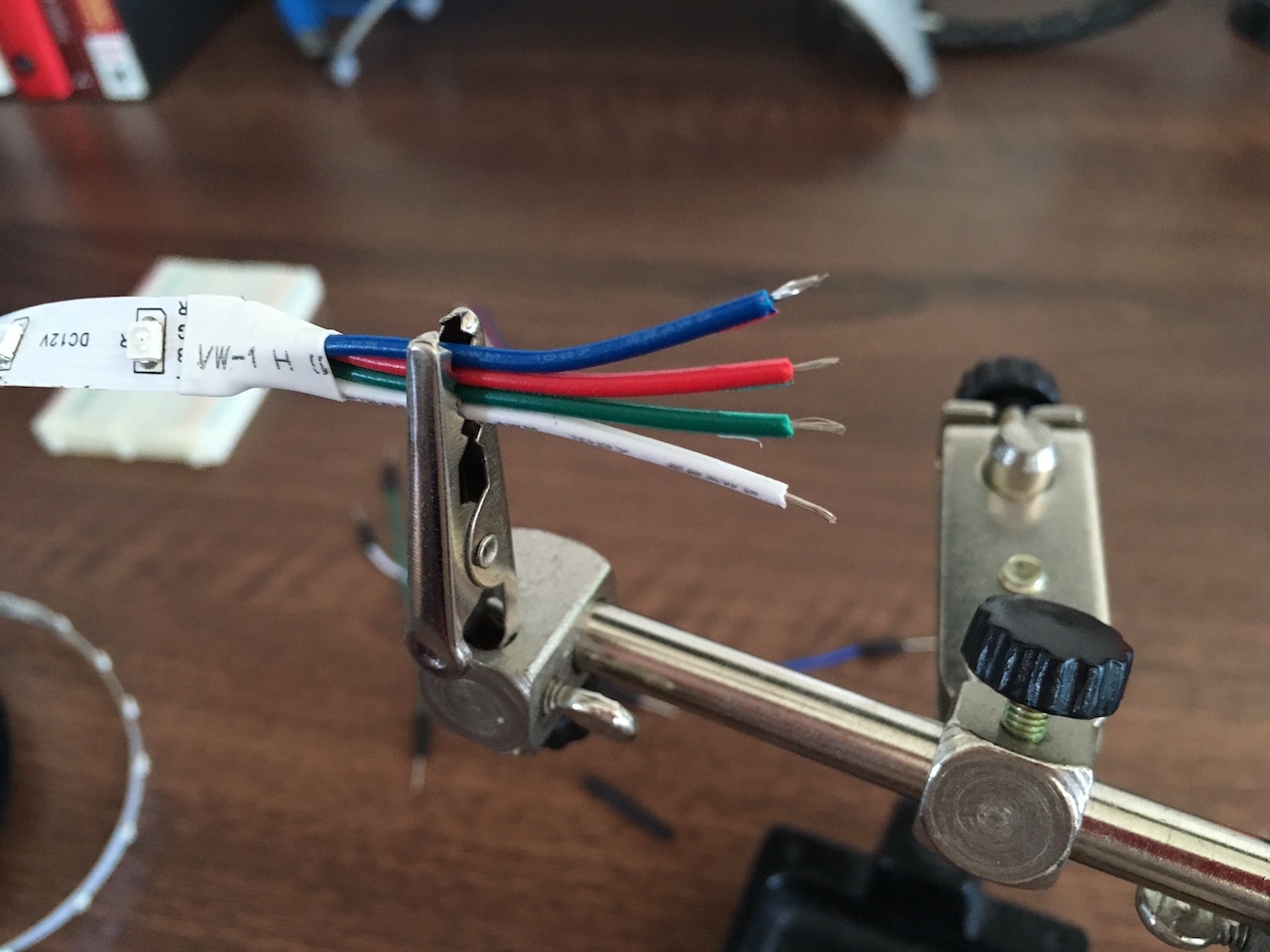

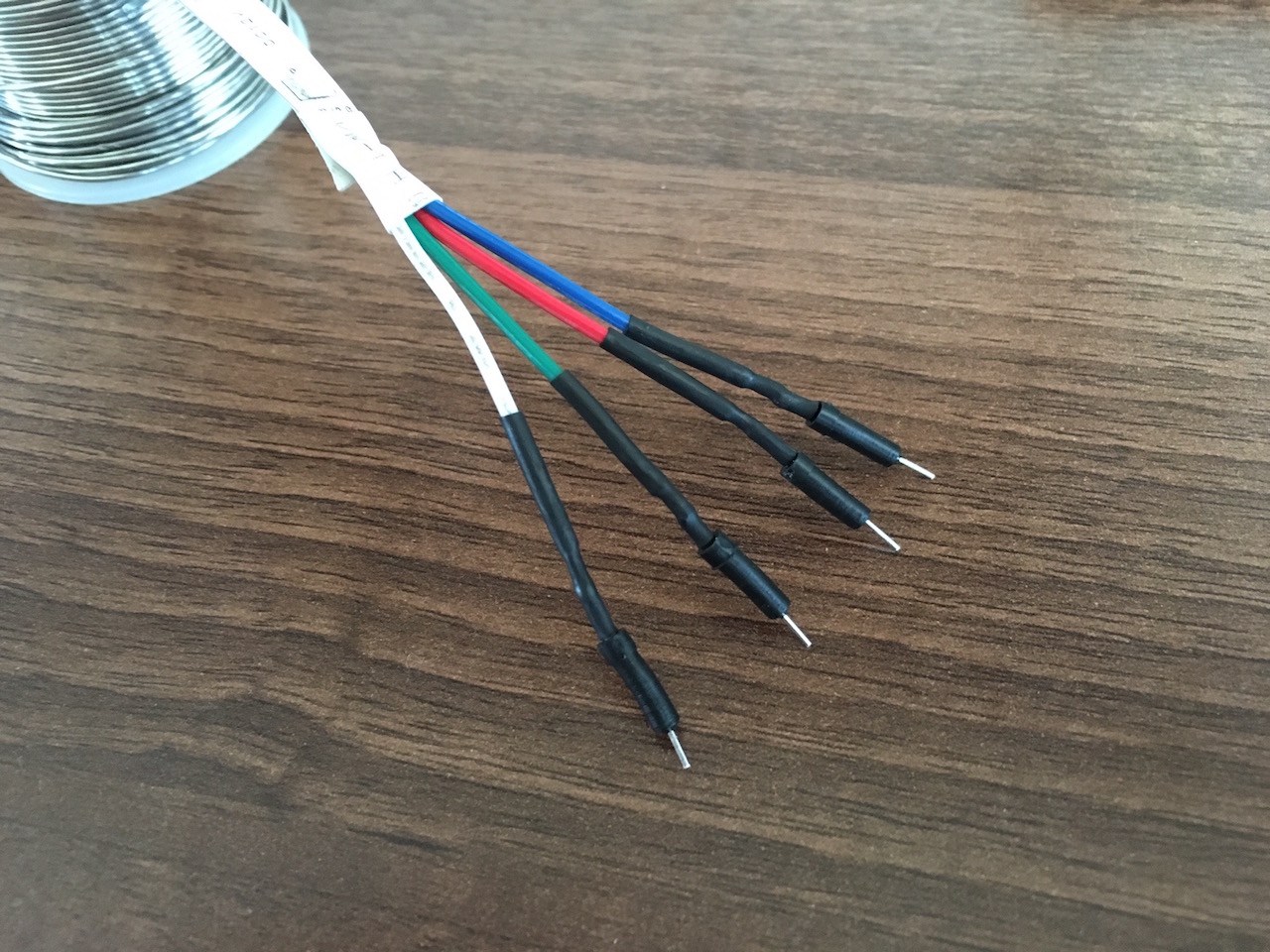

I decided to change the LED strip as the controller is more reusable. The female end was cut off, some male pins stripped from breadboard wires and soldered in place of the original connector.

IMG_0334.jpg IMG_0335.jpg

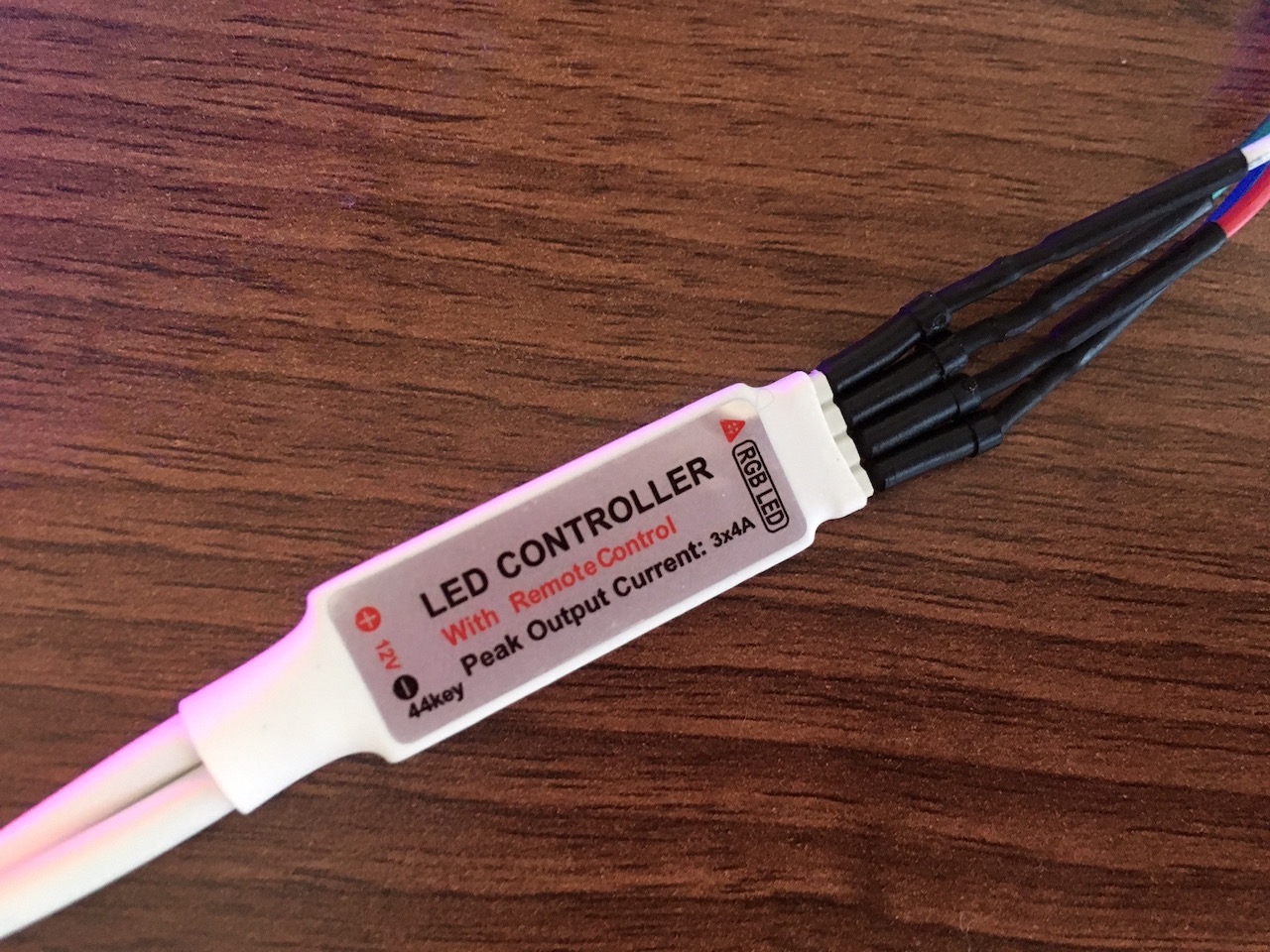

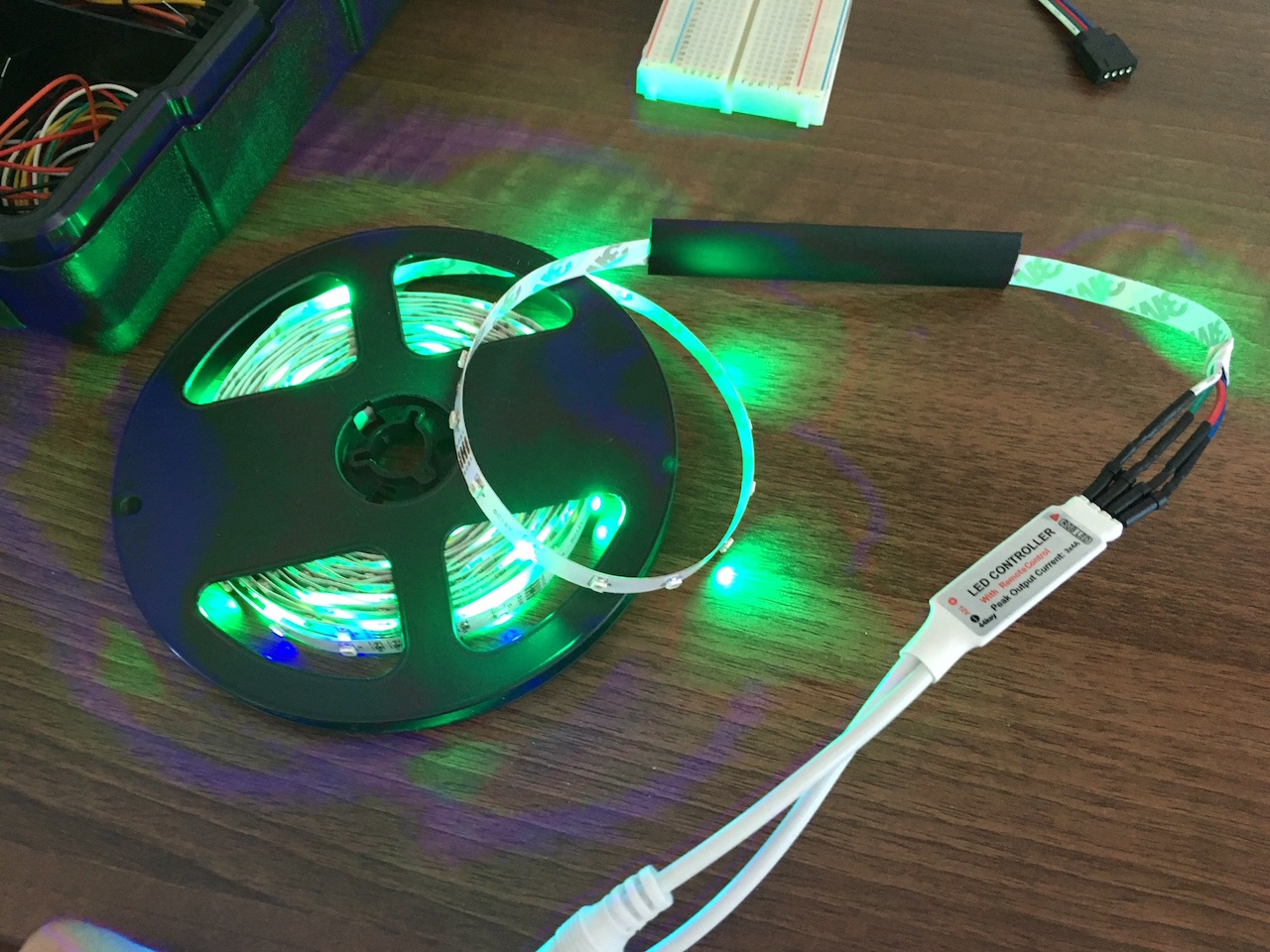

Everything plugged in and power added, we got lift off!

IMG_0336.jpg IMG_0337.jpg

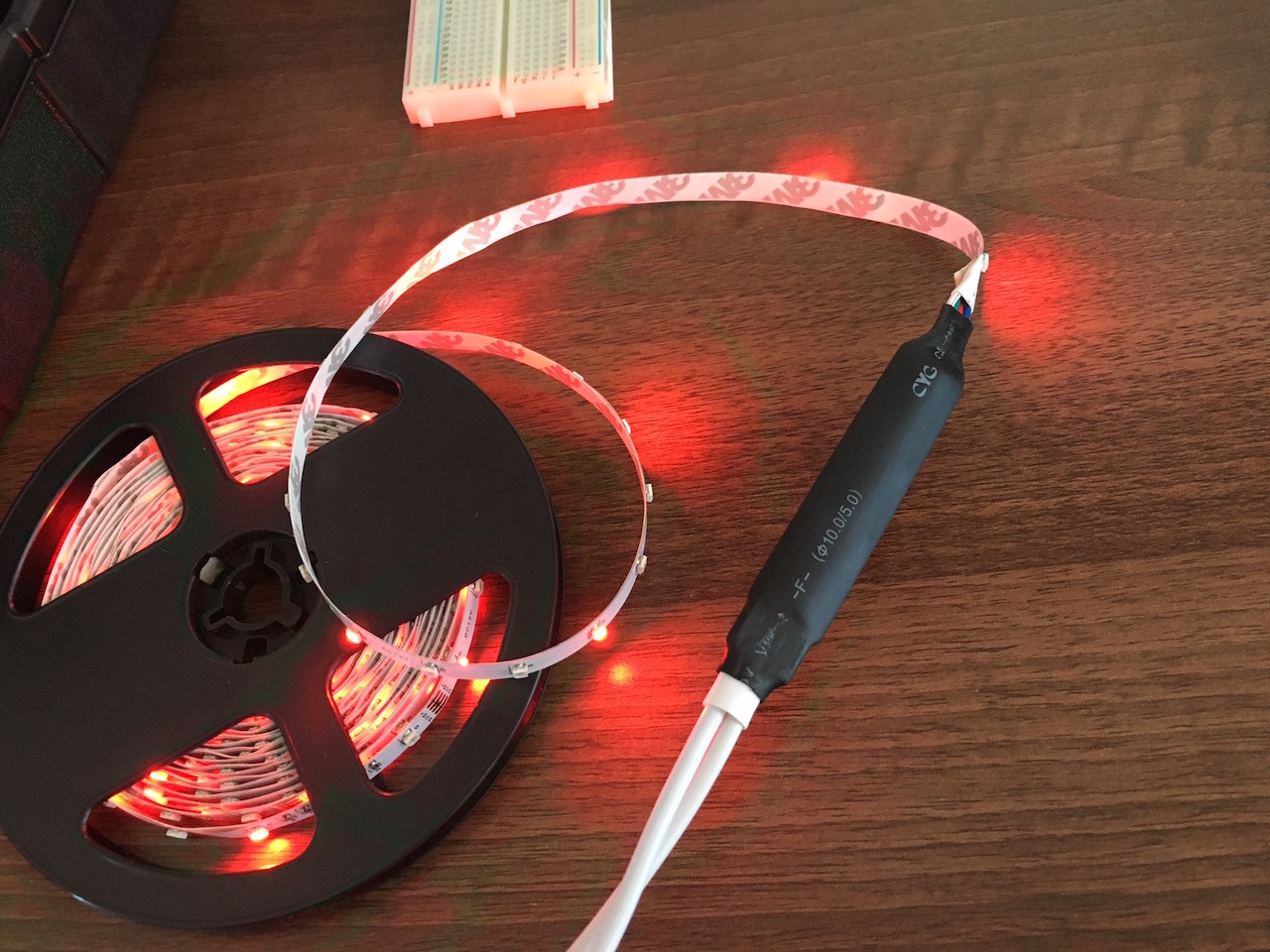

I used some wide heat shrink to seal the LED controller and the wiring so it was at least a little weather proof as this was mounted outside.

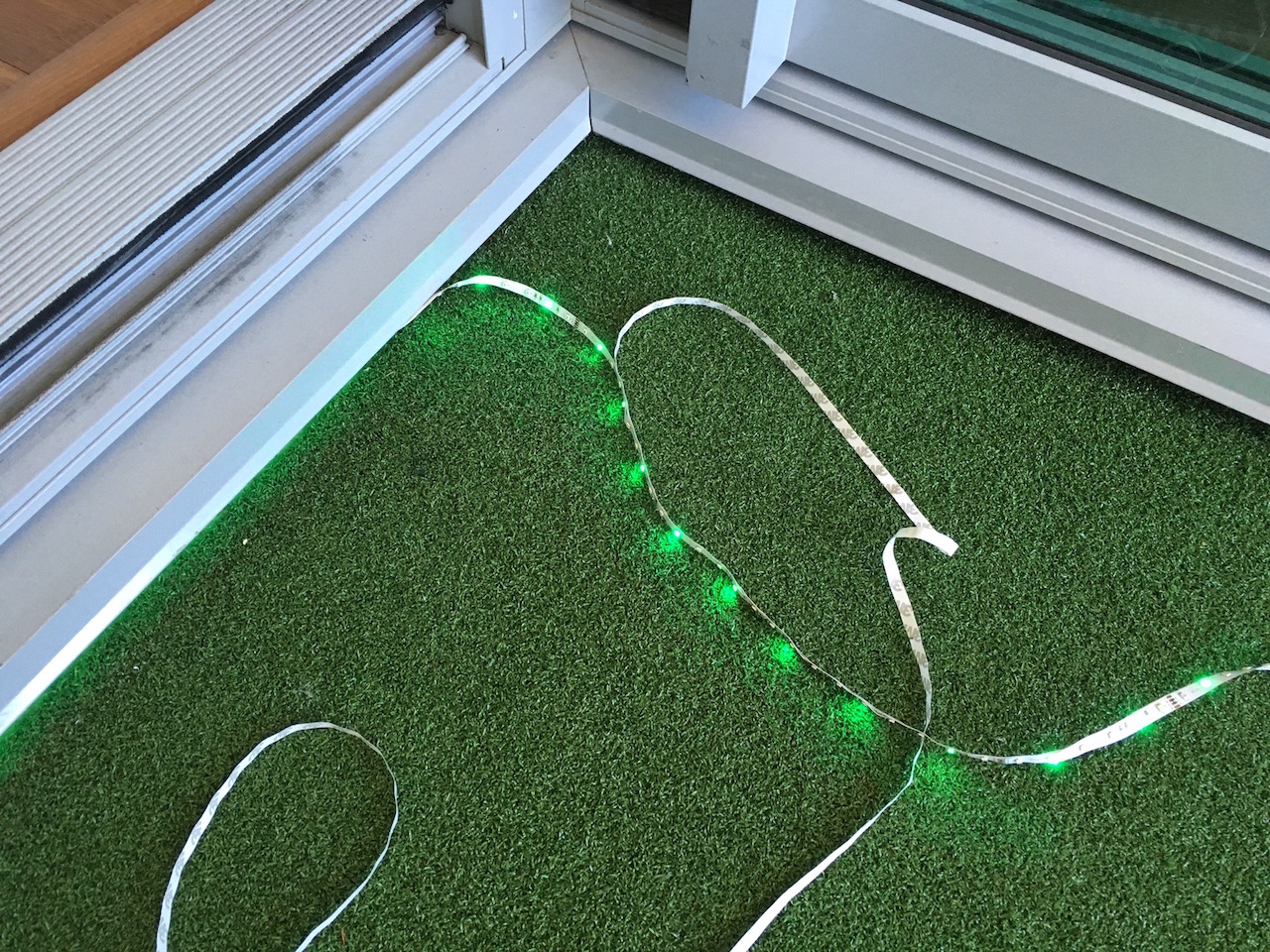

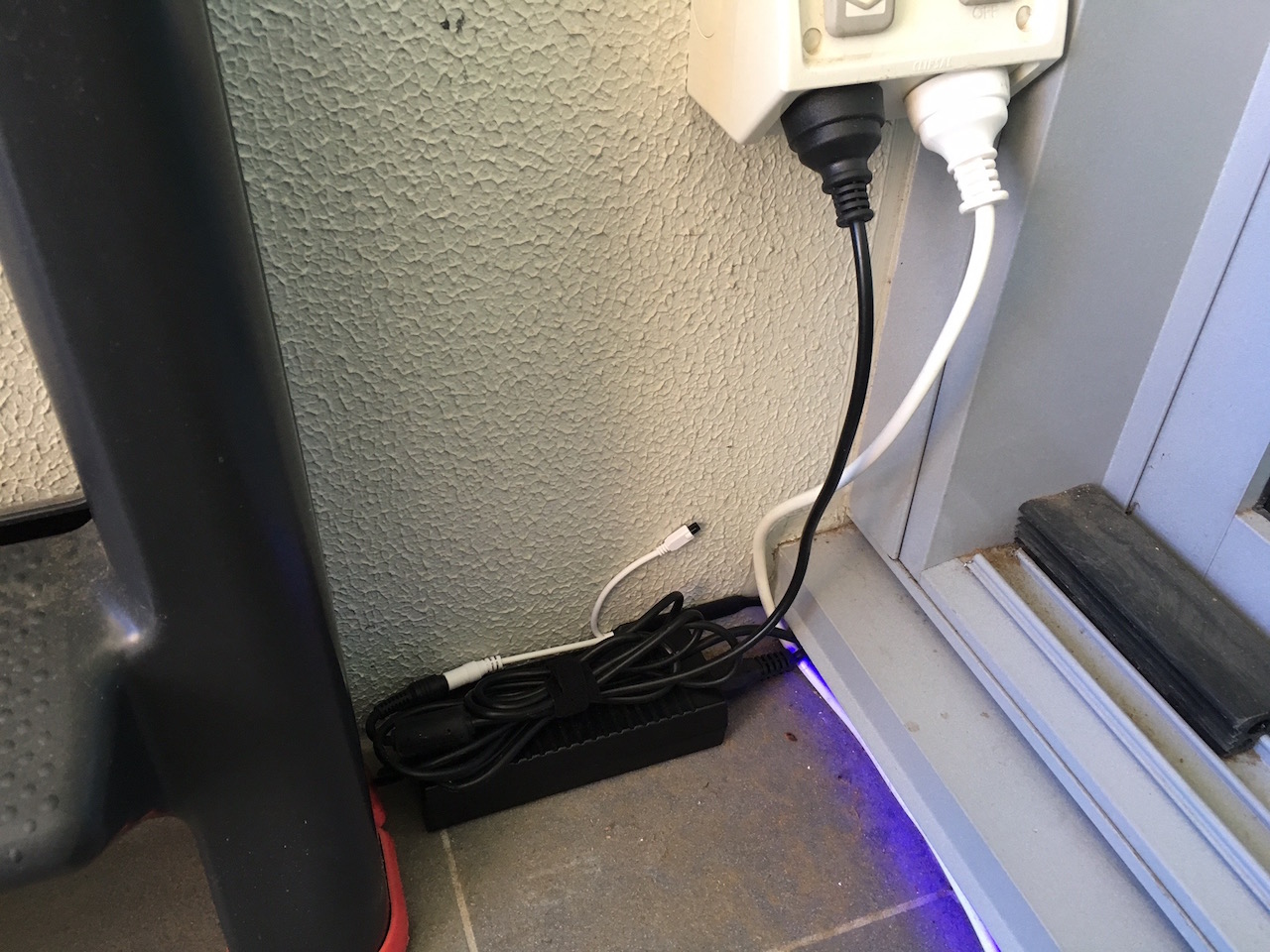

The LED strip had a sticky back so getting it into place under the doors was quite easy. The power supply sat near the external power point. The remote control sensor was simply attached to the wall with some double sided tape.

IMG_0339.jpg IMG_0341.jpg



The end result...not bad actually, here are some videos...





-i

, , , ,
